Custom pa concepts - FIXED installations
If you're interested in working with us,complete the form with a few details about your project. We'll review your message and get back to you within 48 hours. In the meantime, check out some permanent install models below the form.
The Crusader Series is a high-output, large PA system build line, for permanent venues like auditoriums, large stages, clubs, gymnasiums, big churches, music halls, stadiums and schools.
The Crusader Series 01 rents only for permanent installations. Three rental plans are available. Fixed Installation rate depends on rental plan, ranging from $200 to $300 per event. To inquire, fill out the form on the “Permanent Installations” tab.

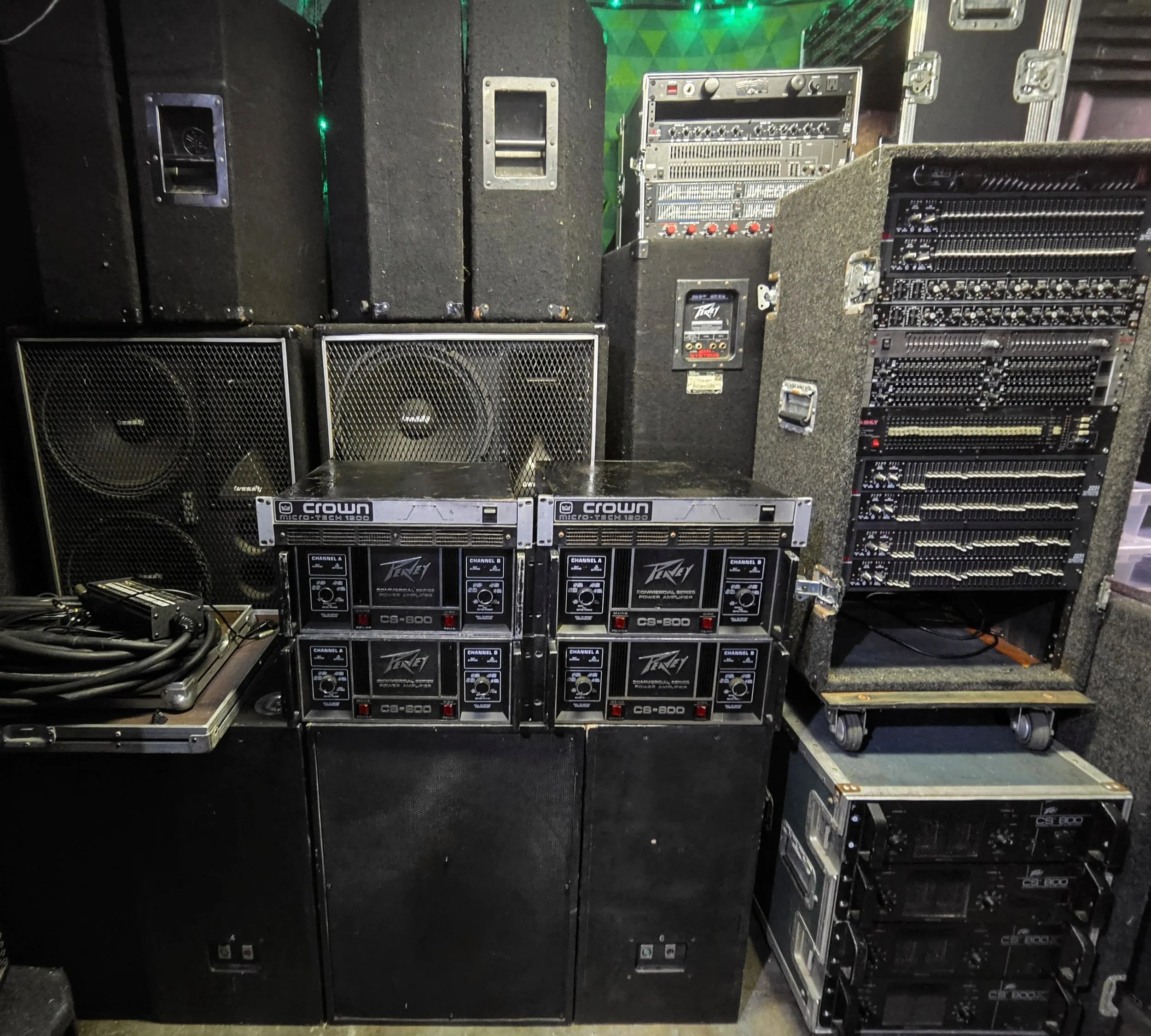

Crusader Series Model 01 Specs:
2X Community CSX 57 dual 15” Passive top mains
2X 1X18” Peavey Passive sub boxes
4X 1X15” Passive Sub boxes with JBL 2226J drivers
2X Community VBS212 sub extension boxes
2X Peavey SP2G 15” side fills
4X 15” Yamaha stage monitors
100’ 24 channel stage XLR snake
SoundCraft Series II 24 channel - 8 bus mixer
3 Processing Racks:
1 - PA System Calibration/Monitoring
Furman Power Conditioner
Rane Mojo MX22 2-Way Crossover
DBX 234XL Crossover (for sub extensions)
DBX 2231 2 Channel Graphic EQ/Limiter (for top main speakers)
2X Alesis M-EQ230 2 Channel EQs (for monitors)
Furman 4 Channel noise gate (for monitors)
2 - Vocal/Instrument/Drums/Misc. (EQ)
Furman Power Conditioner
DBX 2231 - 2 Channel Graphic EQ/Limiter (for kick drums)
Rane PE17 EQ X2 (additional EQ for kick drums)
Nady GEQ235 2 Channel Graphic EQ (snare and floor tom EQ)
Behringer Ultragraph Pro 2 Channel Graphic EQ (toms 1-2)
Behringer Ultragraph Pro 2 Channel Graphic EQ (toms 3-4)
Ashley GQ131 (additional tom EQ)
DBX 2231 - 2 Channel Graphic EQ/Limiter (vocals 1-2)
DBX 2231 - 2 Channel Graphic EQ/Limiter (vocals 3-4)
3 - Vocal/Instrument/Drums/Misc. (Compressors/Noise Gates)
Furman Power Conditioner
Alesis 3630 2 Channel Compressor/Noise Gate (for kick drums)
Alesis 3630 2 Channel Compressor/Noise Gate (snare + floor tom)
Alesis 3630 2 Channel Compressor/Noise Gate (toms 1-2)
Alesis 3630 2 Channel Compressor/Noise Gate (toms 3-4)
Alesis 3630 2 Channel Compressor/Noise Gate (for vocals 1-2)
Alesis 3630 2 Channel Compressor/Noise Gate (for vocals 3-4)
Alesis QuadraVerb (snare reverbs)
Alesis QuadraVerb (toms reverb)
Alesis QuadraVerb (vocal delays)
Alesis QuadraVerb (vocal reverbs)
Rack Compressor - additional compressor for bass/misc.
Power Amp Racks with Class AB amplifiers:
Peavey CS800 (in bridged mode for 18” middle sub 1)
Peavey CS800 (in bridged mode for 18” middle sub 2)
Peavey CS800x (in bridged mode for left main speaker)
Peavey CS800x (in bridged mode for right main speaker)
Peavey OG CS800 (in stereo mode - lowpass for sub extensions)
Peavey OG CS800 (in bridged mode for 2X 15” subs stage left)
Peavey OG CS800 (in bridged mode for 2X 15” subs stage right)
Peavey OG CS800 (in stereo mode for side fills)
Crown MicroTech 1200 (in stereo mode for monitors 1-2)
Crown MicroTech 1200 (in stereo mode for monitors 3-4)
Vocal and instrument mics, mic stands, DI boxes, and cabling included. Instructions + Delivery also available upon request.
Accommodate DI inputs from Synths, Pedals, Drum Modules, Samplers and more
External FX processing for Drums and vocals via Vintage Digital effects components
Designed for long-term stationary use, the Sentry Series build line lets venues, clubs, and bars host countless events without the stressful process of loading in and repeatedly setting up a PA system. Covering front of house with a matched set of top main speakers, a dedicated set of subs and an amplifier rack, you simply add a mixer of your choice and you’re ready to go—reliable, consistent, and built for worry-free performance night after night.
S200 Specifications:
2X Carvin 12” top speakers, 250 Watts @ 8 ohms each
2X Custom 15” sub boxes, 150 Watts @ 8 ohms each
1X Top Amp: Mackie M1200 225 Watts RMS @ 8 ohms per channel
1X Sub Amp: Carver PX850 250 Watts RMS @ 8 ohms per channel
2X Speaker Stands
All Speaker cables included
All‑in‑one rack for power conditioner and amps with preset crossovers
Installation guide
Mixer not included.
Price: $40 per day of event.
The Sentry Series rents only for permanent installations. Three rental plans are available for each model. Fixed Installation rate depends on rental plan. To rent, fill out the form on the “Permanent Installations” tab, or the form found in the section below. We will follow up shortly with a confirmation email and text.
Designed for long-term stationary use, the Sentry Series build line lets venues, clubs, and bars host countless events without the stressful process of loading in and repeatedly setting up a PA system. Covering front of house with a matched set of top main speakers, a dedicated set of subs and an amplifier rack, you simply add a mixer of your choice and you’re ready to go—reliable, consistent, and built for worry-free performance night after night.
S400 Specifications:
2X SoundTech top speakers, 150 Watts RMS @ 8 ohms each
2X JBL 15” Sub boxes, 300 Watts RMS @ 8 ohms each
1X Top Amp: Carver PM300, 125 Watts RMS @ 8 ohms per channel
1X Sub Amp: Carver PM350, 350 Watts RMS @ 8 ohms per channel
2X Speaker Stands
All Speaker cables included
All-in-one rack chassis for amps including pre set Crossover and Power Conditioner
Installation guide
*Mixer not included
Price: $40 per day of event.
The Sentry Series rents only for permanent installations. Three rental plans are available for each model. Fixed Installation rate depends on rental plan. To rent, fill out the form on the “Permanent Installations” tab, or the form found in the section below. We will follow up shortly with a confirmation email and text.
Designed for long-term stationary use, the Sentry Series build line lets venues, clubs, and bars host countless events without the stressful process of loading in and repeatedly setting up a PA system. Covering front of house with a matched set of top main speakers, a dedicated set of subs and an amplifier rack, you simply add a mixer of your choice and you’re ready to go—reliable, consistent, and built for worry-free performance night after night.
S-600 Specifications:
2X EV 12” Top speakers, 300 Watts RMS @ 8 ohms each
2X JBL 15” Sub boxes, 300 Watts @ 8 ohms each
1X Top Amp: Peavey CS400, 200 Watts RMS @ 8 ohms per channel
1X Sub Amp: Crown XLS402, 300 Watts RMS @ 8 ohms per channel
2X Speaker Stands
All Speaker cables included
All-in-one rack chassis including pre set Crossover and Power Conditioner
Installation guide
*Mixer not included
Price: $40 per day of event.
The Sentry Series rents only for permanent installations. Three rental plans are available for each model. Fixed Installation rate depends on rental plan. To rent, fill out the form on the “Permanent Installations” tab, or the form found in the section below. We will follow up shortly with a confirmation email and text.
Designed for long-term stationary use, the Sentry Series build line lets venues, clubs, and bars host countless events without the stressful process of loading in and repeatedly setting up a PA system. Covering front of house with a matched set of top main speakers, a dedicated set of subs and an amplifier rack, you simply add a mixer of your choice and you’re ready to go—reliable, consistent, and built for worry-free performance night after night.
S-700 Specifications:
2X PAS 12” Top speakers, 250 Watts RMS @ 8 ohms each
2X Peavey SP2G 15” Sub Boxes, 400 Watts RMS @ 8 ohms each
1X Top Amp: Mackie M1400i 250 Watts RMS @ 8 ohms per channel
1X Sub Amp: Mackie M1400i 1400 Peak Watts @ 4 ohms bridged mode
All speaker cables included
All-in-one rack chassis for amps with pre set crossovers
Installation guide
*Mixer not included
Rental Price: $45 per day of event.
The Sentry Series rents only for permanent installations. Three rental plans are available for each model. Fixed Installation rate depends on rental plan. To rent, fill out the form on the “Permanent Installations” tab, or the form found in the section below. We will follow up shortly with a confirmation email and text.
Designed for long-term stationary use, the Sentry Series build line lets venues, clubs, and bars host countless events without the stressful process of loading in and repeatedly setting up a PA system. Covering front of house with a matched set of top main speakers, a dedicated set of subs and an amplifier rack, you simply add a mixer of your choice and you’re ready to go—reliable, consistent, and built for worry-free performance night after night.
S-800 Specifications:
2X Yamaha 15” Top Speakers, 400 Watts RMS @ 8 ohms each
2X PAS 18” Sub Boxes, 300 Watts each @ 8 ohms
1X Top Amp: Yamaha P2500S, 275 Watts @ 8 ohms per channel
1X Sub Amp: Yamaha P3500S, 390 Watts @ 8 ohms per channel
All speaker cables included
All-in-one rack chassis including pre set Crossover and Power Conditioner
Installation guide
*Mixer not included
Price: $45 per day of event.
The Sentry Series rents only for permanent installations. Three rental plans are available for each model. Fixed Installation rate depends on rental plan. To rent, fill out the form on the “Permanent Installations” tab, or the form found in the section below. We will follow up shortly with a confirmation email and text.
Designed for long-term stationary use, the Sentry Series build line lets venues, clubs, and bars host countless events without the stressful process of loading in and repeatedly setting up a PA system. Covering front of house with a matched set of top main speakers and a dedicated set of subs, you simply add a mixer of your choice and you’re ready to go—reliable, consistent, and built for worry-free performance night after night.
The S1000 is an upgraded prototype in the Sentry line. Unlike passive setups that need external amps and crossovers, this model is fully active with built-in crossovers and amplifiers. It still delivers huge sound and can match the power of heavier analog rigs like the S800 or S1200.
S1000 Specifications:
2X Mackie Powered 1×15” Top Speakers, 300 Watts RMS each
2X Behringer Powered 18” Subs,, 400 Watts RMS each
All cables included
Installation guide
*Mixer not included
Price: $60 per day of event.
The Sentry Series rents only for permanent installations. Three rental plans are available for each model. Fixed Installation rate depends on rental plan. To rent, fill out the form on the “Permanent Installations” tab, or the form found in the section below. We will follow up shortly with a confirmation email and text.
Designed for long-term stationary use, the Sentry Series build line lets venues, clubs, and bars host countless events without the stressful process of loading in and repeatedly setting up a PA system. Covering front of house with a matched set of top main speakers, a dedicated set of subs and an amplifier rack, you simply add a mixer of your choice and you’re ready to go—reliable, consistent, and built for worry-free performance night after night.
S-1200 Specifications:
2X JBL JRX225 2×15” Top Speakers, 500 RMS - 2000 Peak Watts @ 4 ohms each
2X JBL 18” Sub Boxes, 600 Watts each @ 8 ohms
2X Top Amps: QSC RMX2450, 2400 Peak Watts @ 4 ohms bridged, each
1X Sub Amp: MUSYCIC MU-8000, 500 Watts RMS @ 8 ohms per channel
All speaker cables included
All-in-one rack chassis including pre set Crossover and Power Conditioner
Installation guide
*Mixer not included
Price: $60 per day of event.
The Sentry Series rents only for permanent installations. Three rental plans are available for each model. Fixed Installation rate depends on rental plan. To rent, fill out the form on the “Permanent Installations” tab, or the form found in the section below. We will follow up shortly with a confirmation email and text.
